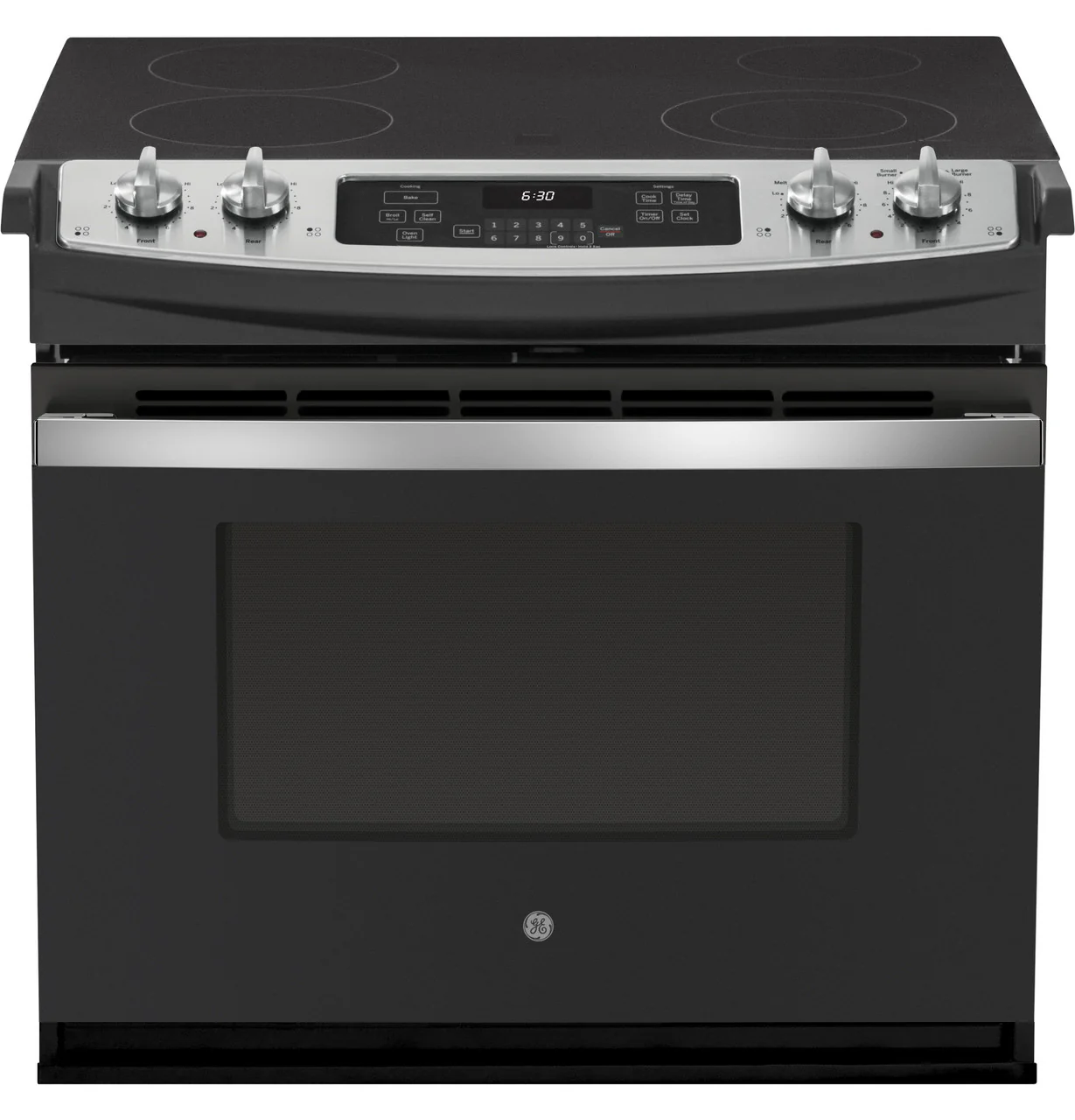

GE® 30" Drop-In Electric Range
- 9"/6" Power Boil element
- Self-clean oven
- Ceramic glass cooktop
- Dimensions: 27 H x 31 1/4 W x 28 1/2 D
-
APPEARANCE
- Color AppearanceStainless Steel/Gray
- Control KnobsStainless Steel Appearance
- HandleDesigner Style
- Handle ColorStainless Steel
- InstallationFlush Appearance
- Oven Door FeaturesBig View Oven WindowGlass Door
-
CAPACITY
- Total Capacity (cubic feet)4.40 cu ft
-
FEATURES
- Control LocationFront
- Control TypeDigital Temperature DisplayElectronicTouchpads
- Cooking TechnologyTraditional
- Cooktop Burner TypeRadiantSmoothtop
- Cooktop SurfaceOverhanging CooktopGray Patterned Ceramic Glass
- Cooktop TypeRadiant Smoothtop
- Element - Left Front8" 2000W
- Element - Left Rear8" 2000W
- Element - Right Front9"/6" 3000W Power Boil
- Element - Right Rear6" 1200W
- Fuel TypeElectric
- Heating Element "ON" Indicator Light2
- Hot Surface Indicator Lights4
- Interior Oven Light1 Incandescent
- Melt SettingYes
- OU CertifiedNo
- Oven Cleaning TypeSelf-Clean
- Oven Control FeaturesAudible Preheat SignalAuto Oven Shut-Off with OverrideC° or F° ProgrammableSabbath ModeControl Lock CapabilityDelay Bake Option With Cook & HoldElectronic Clock & Kitchen Timer
- Oven Features6-Pass Bake Element6-Pass Broil Element
- Oven Rack Features2 Oven Racks
- Oven Rack Positions (Single or Upper/Lower)7
- Power Boil BurnerYes
- Product TypeDrop-In
- Sabbath ModeYes
- Self-Clean Oven Door LockAutomatic
-
POWER / RATINGS
- Amp Rating at 208V40
- Amp Rating at 240V40
- Bake Wattage3410W
- Broiler Wattage3420W
- Electrical Requirements208/240V ; 60Hz ; 40A
- Hertz60
- KW Rating at 208V8.9
- KW Rating at 240V11.9
-
WARRANTY
- Labor WarrantyLimited 1-year entire appliance
- Parts WarrantyLimited 1-year entire appliance
- Warranty NotesSee written warranty for full details
-
WEIGHTS & DIMENSIONS
- Approximate Shipping Weight184 lb
- Cabinet Opening30 in
- Cabinet Width30 in
- Cooktop Width31 1/4 in
- Depth with Door Open44 5/8 in
- Depth Without Handle25 3/4 in
- Net Weight163 lb
- Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4
- Overall Depth28 1/2 in
- Overall Height27 in
- Overall Width31 1/4 in
